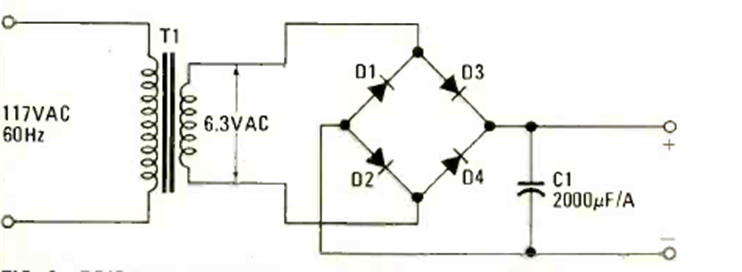

This non-regulated power supply uses a single secondary winding transformer. The secondary voltage determines the output voltage, and the diodes must be rated according to the transformer current.
| Clique na imagem para ampliar |
Single-phase power supply with diode bridge (CB24571E)
- Details
- Written by: Newton C. Braga
