Coded Infrared Transmitter (CB24829E)

Details
Written by: Newton C. Braga



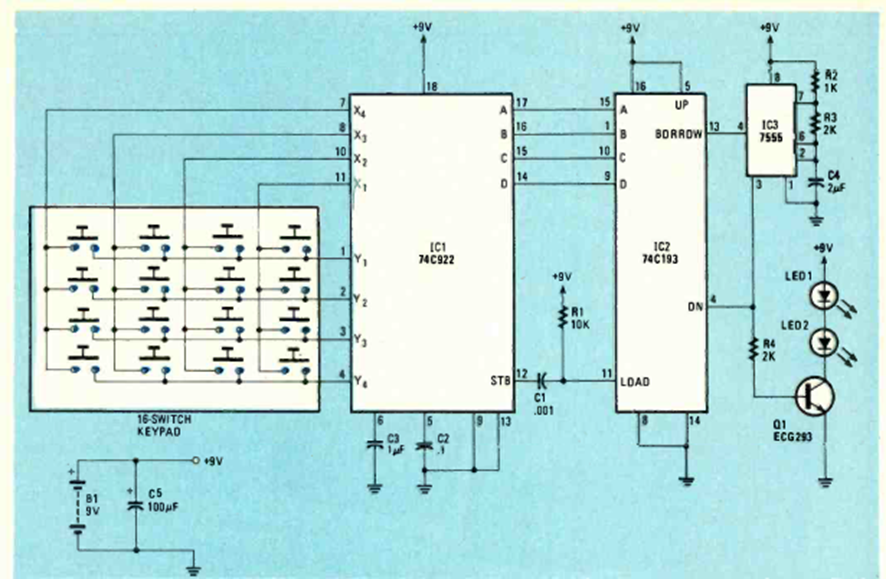

This circuit for a 16-channel infrared transmitter was found in the August 1984 issue of Radio Electronics magazine. The circuit is powered by a 9 V battery.




| Clique na imagem para ampliar |
