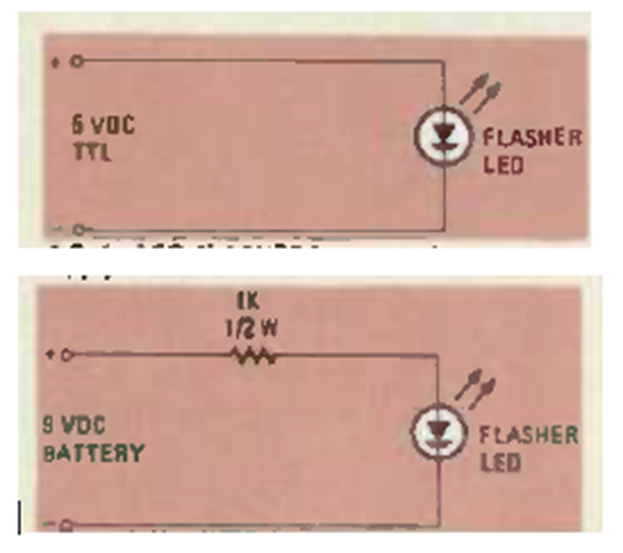

The figure shows two ways to power a common LED flasher. The suggestion comes from an article in Radio Electronics magazine from October 1980. The common power supply is normally 5 V, requiring a resistor for higher voltages.
Powering an LED flasher (CB24660E)
- Details
- Written by: Newton C. Braga
