Alarm with Shutdown (CB24375E)

Details
Written by: Newton C. Braga

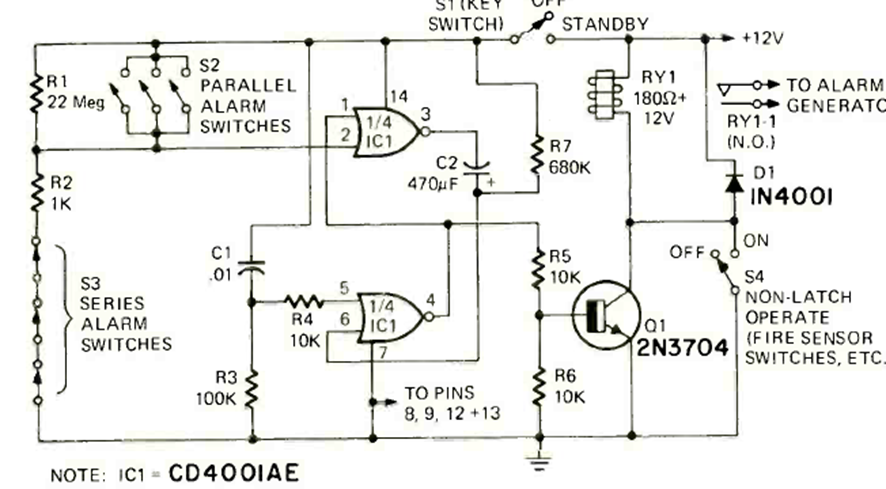

This alarm with automatic shutoff was found in the April 1975 Radio Electronics magazine. The activation time is given by C1 and R3. The alarm uses series and parallel sensors.
