Field Strength Meter (CB24535E)

Details
Written by: Newton C. Braga

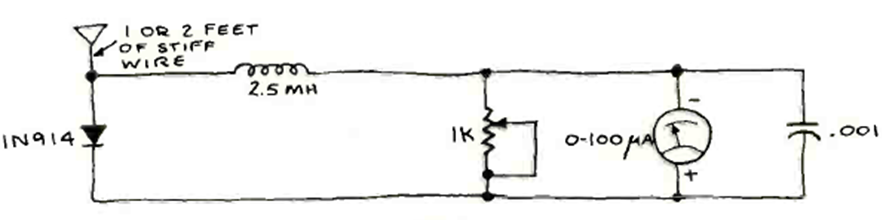

Indicated for adjustment in transmitters for the 11-meter band, this circuit with analog meter was found in the Radio Electronics magazine of January 1978. The circuit does not use a power supply.
