Precision PLL with the XR2208 (CB24552E)

Details
Written by: Newton C. Braga

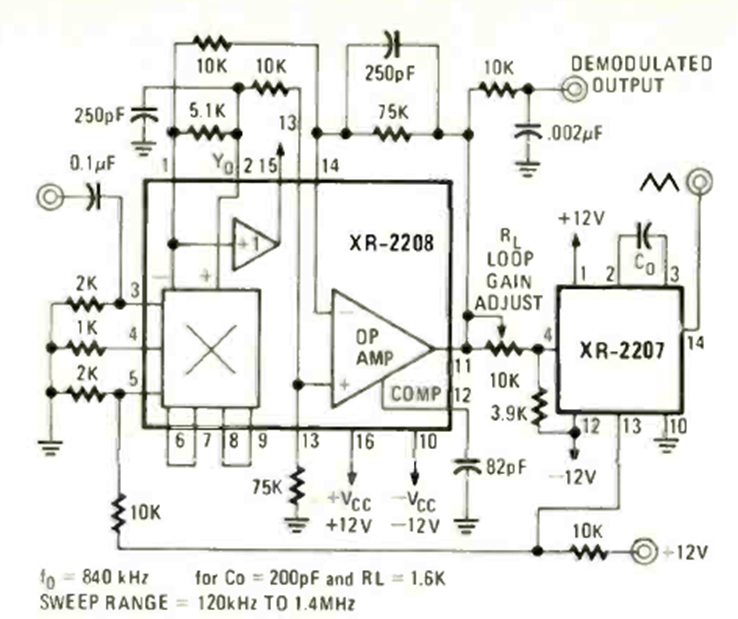

This PLL circuit was found in the April 1978 issue of Radio Electronics magazine. The circuit is powered with up to 15 V voltages from a symmetrical source.




| Clique na imagem para ampliar |
