Diac Test Circuit (CB26106E)

Details
Written by: Newton C. Braga

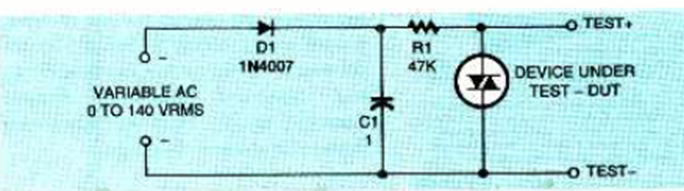

We found this test circuit in the November 1999 issue of Electronics Now magazine. The circuit is to be connected in series with a load rated for the diac current.




| Clique na imagem para ampliar |
