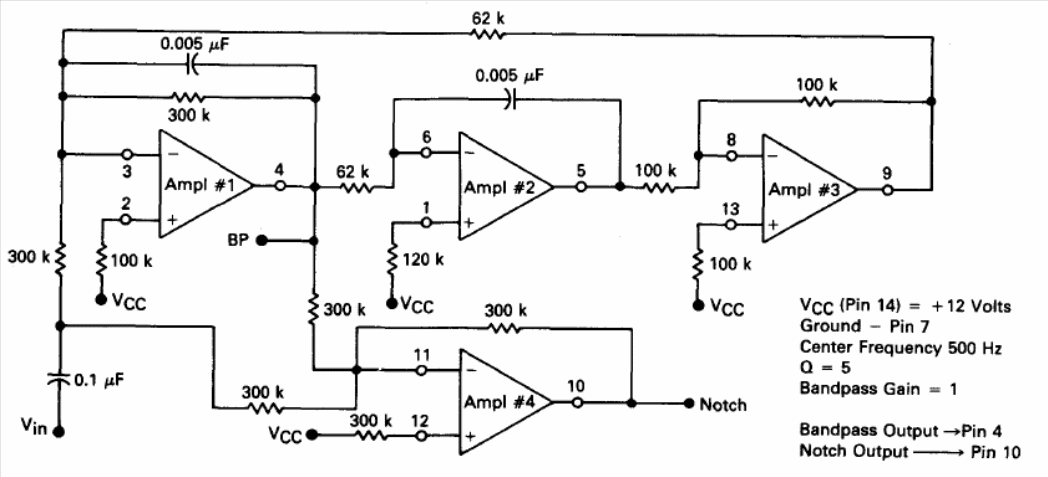

This configuration using the four transconductance operational amplifiers of an LM3900 was found in Motorola's 1990 Linear Databook. The circuit should use symmetric power source and components can be changed to other frequencies.
