Varicap Frequency doubler with (CB4107E)

Details
Written by: Newton C. Braga

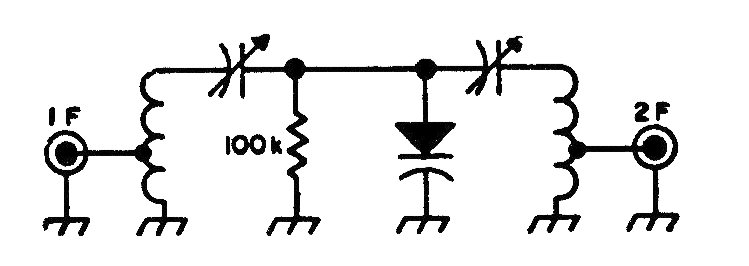

    We find this circuit in American documentation from the 1980s. It consists of a frequency folder using a varicap. The capacitors and coils depend on the frequency of operation.
