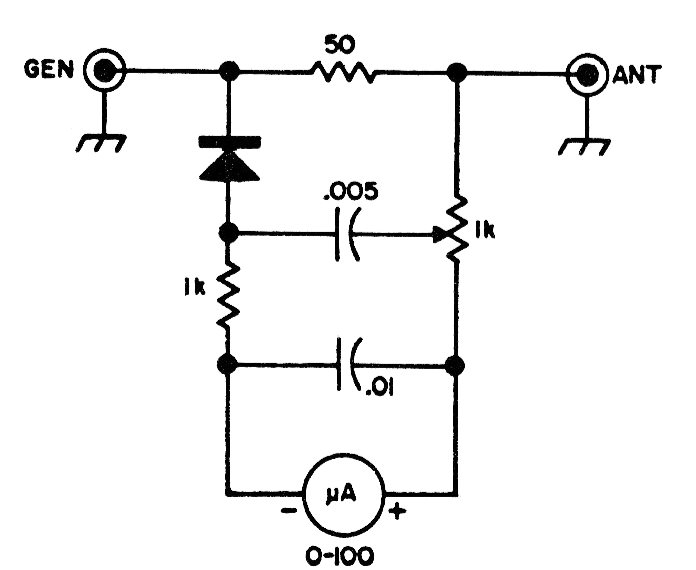

Found in an American amateur radio documentation by the name of “antennascope” this circuit is intended to measure the impedance of an antenna. The instrument is a 0-100 uA microammeter and the commonly used diode.
| Clique na imagem para ampliar |
Found in an American amateur radio documentation by the name of “antennascope” this circuit is intended to measure the impedance of an antenna. The instrument is a 0-100 uA microammeter and the commonly used diode.
