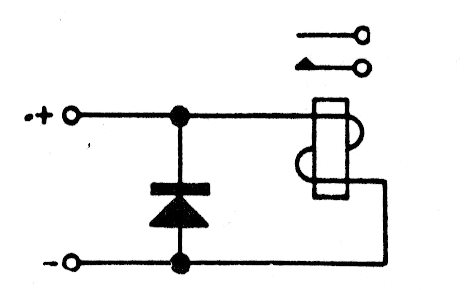

This circuit, extensively explored in this section and in circuits on this site, is recommended to protect the drive circuit against voltage spikes generated by switching inductive loads as a relay. Any common diode can be used in this application.
