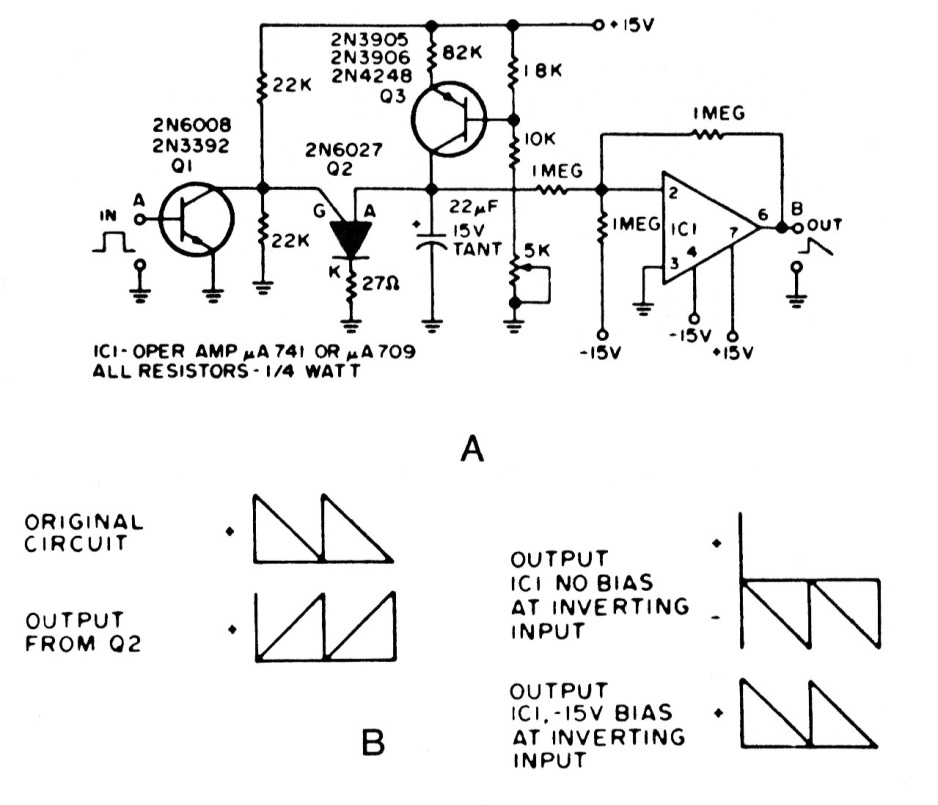

The purpose of this circuit is to re-trigger slow scan circuits used in the 1980s on low frequency scan analyzer as shown in the previous circuit. In the figure we have the produced image forms and the signs.
| Clique na imagem para ampliar |
The purpose of this circuit is to re-trigger slow scan circuits used in the 1980s on low frequency scan analyzer as shown in the previous circuit. In the figure we have the produced image forms and the signs.
