Electronic Morse Key (CB4196E)

Details
Written by: Newton C. Braga

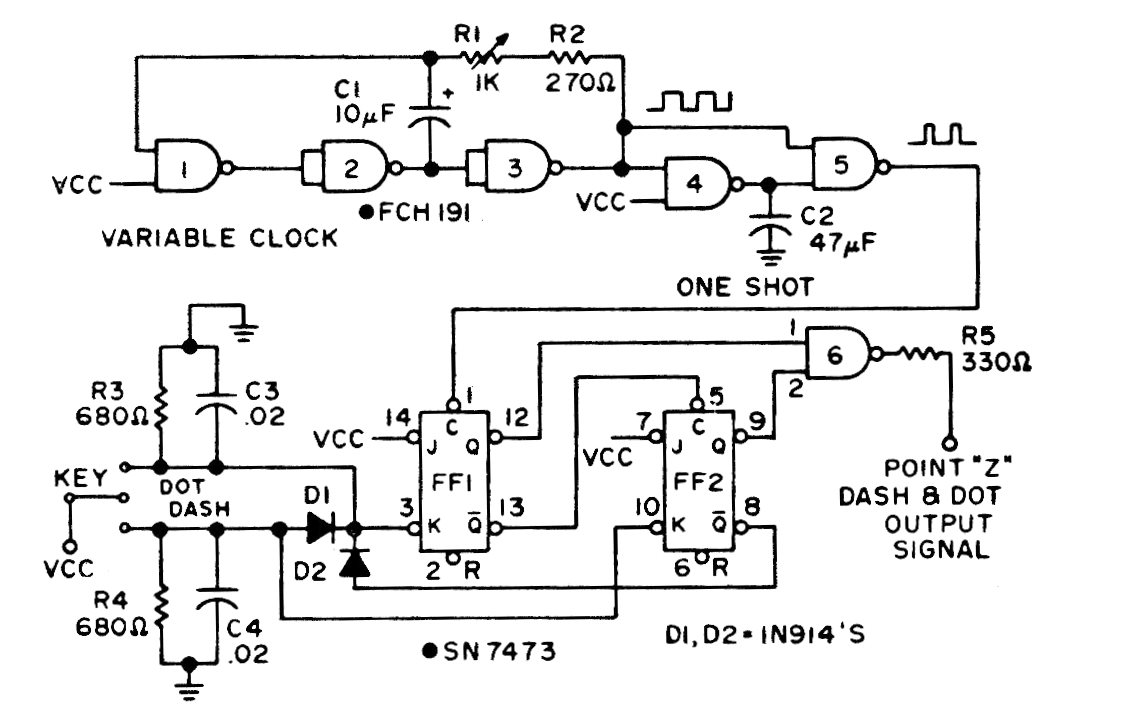

     This electronic Morse Key for telegraph message transmission was found in an American 1980s amateur radio documentation. The circuit uses TTL technology and must be powered by a 5V voltage.
