Video Amplifier (CB4209E)

Details
Written by: Newton C. Braga

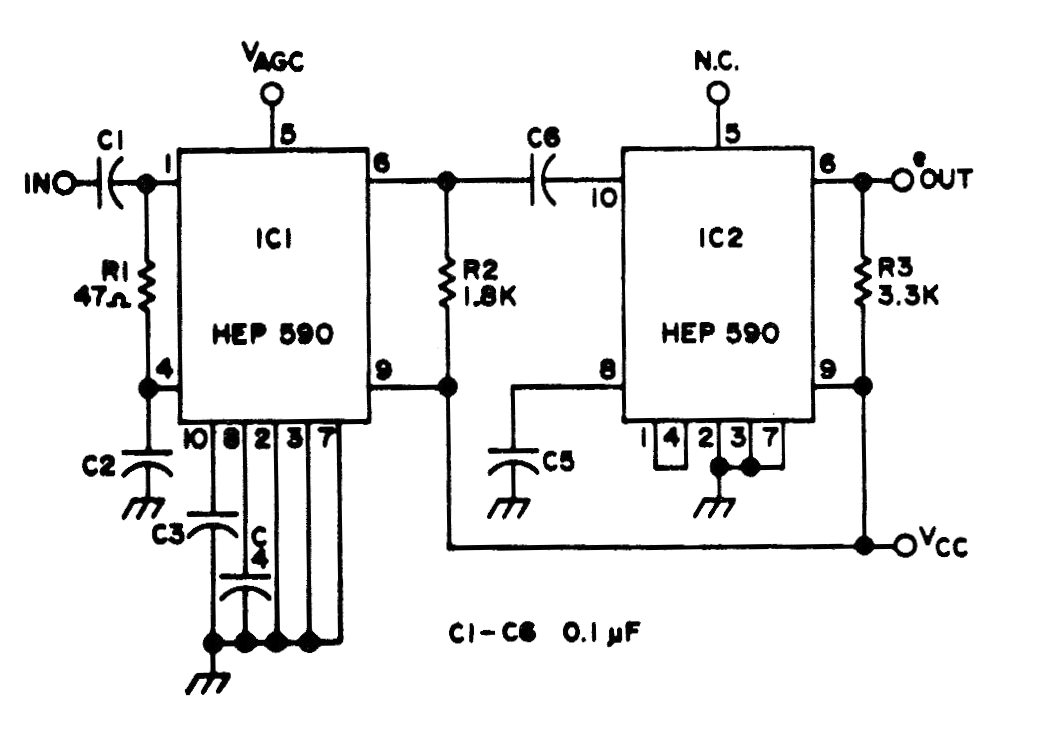

     This old two-stage video amplifier uses integrated circuits that are not easily obtainable today. The circuit is for analog video and was found in an American 1980s documentation.




| Clique na imagem para ampliar |
