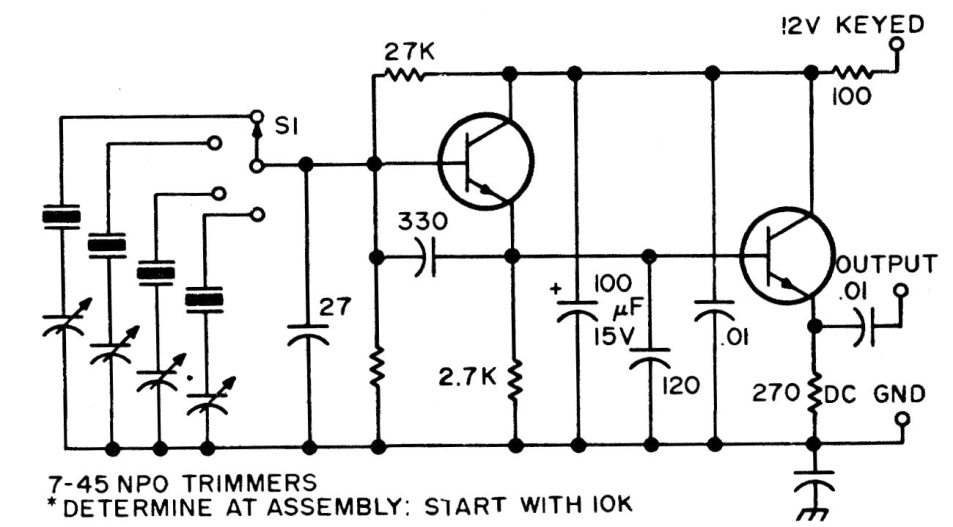

This oscillator for various frequencies was obtained from a 1980s telecom documentation. The frequencies are selected according to the crystals. Transistors may be common RF types. The circuit is suitable for CW transmitters.
