Balanced Mixer as Product Detector (CB4235E)

Details
Written by: Newton C. Braga

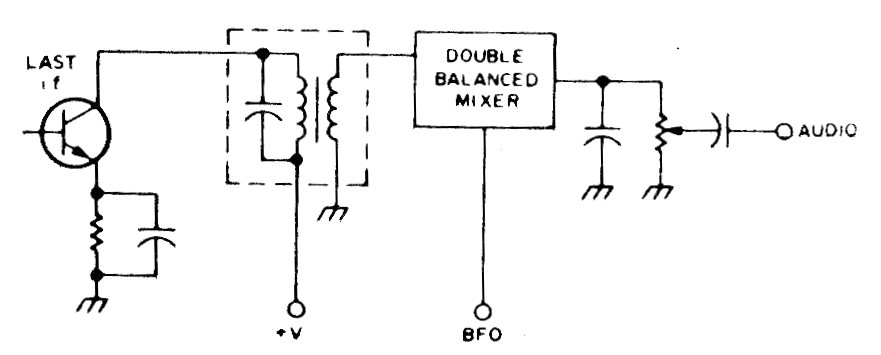

     Found in a 1980s telecommunications documentation, the circuit presented acts as a product detector. The modulator or mixer in the square may be that of the previous circuit.




| Clique na imagem para ampliar |
