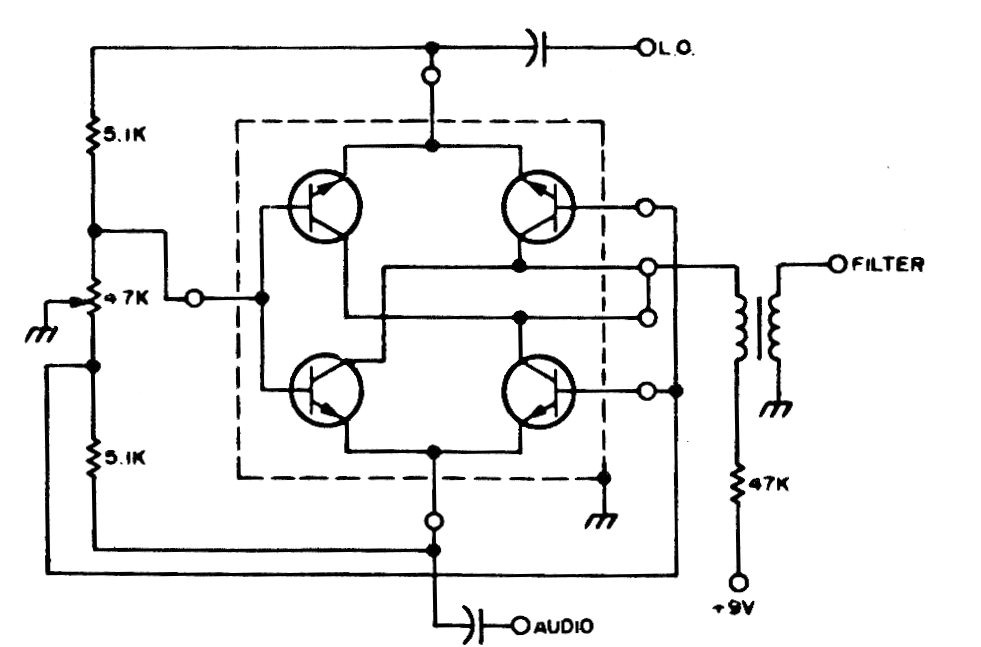

We find this circuit in a 1980s documentation. The circuit is for SSB modulation and the integrated one is actually an array of 4 matched transistors, a common configuration at the time.
| Clique na imagem para ampliar |
CB4238E
We find this circuit in a 1980s documentation. The circuit is for SSB modulation and the integrated one is actually an array of 4 matched transistors, a common configuration at the time.
CB4238E
