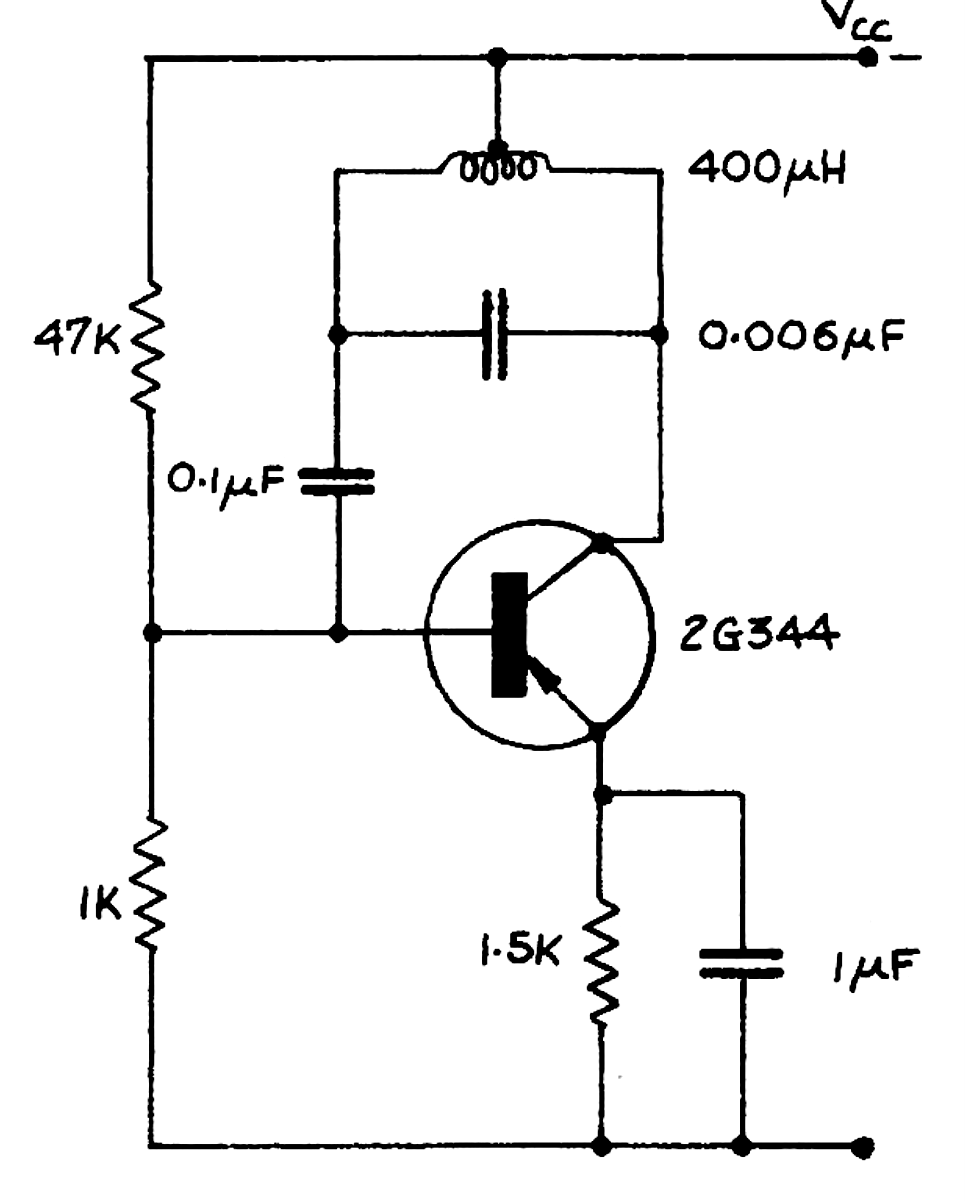

In the figure we have the typical configuration of a Hartley oscillator. This circuit generates 100 kHz signals with the used component values but it can operate up to a few dozen megahertz or more depending on the transistor used.
