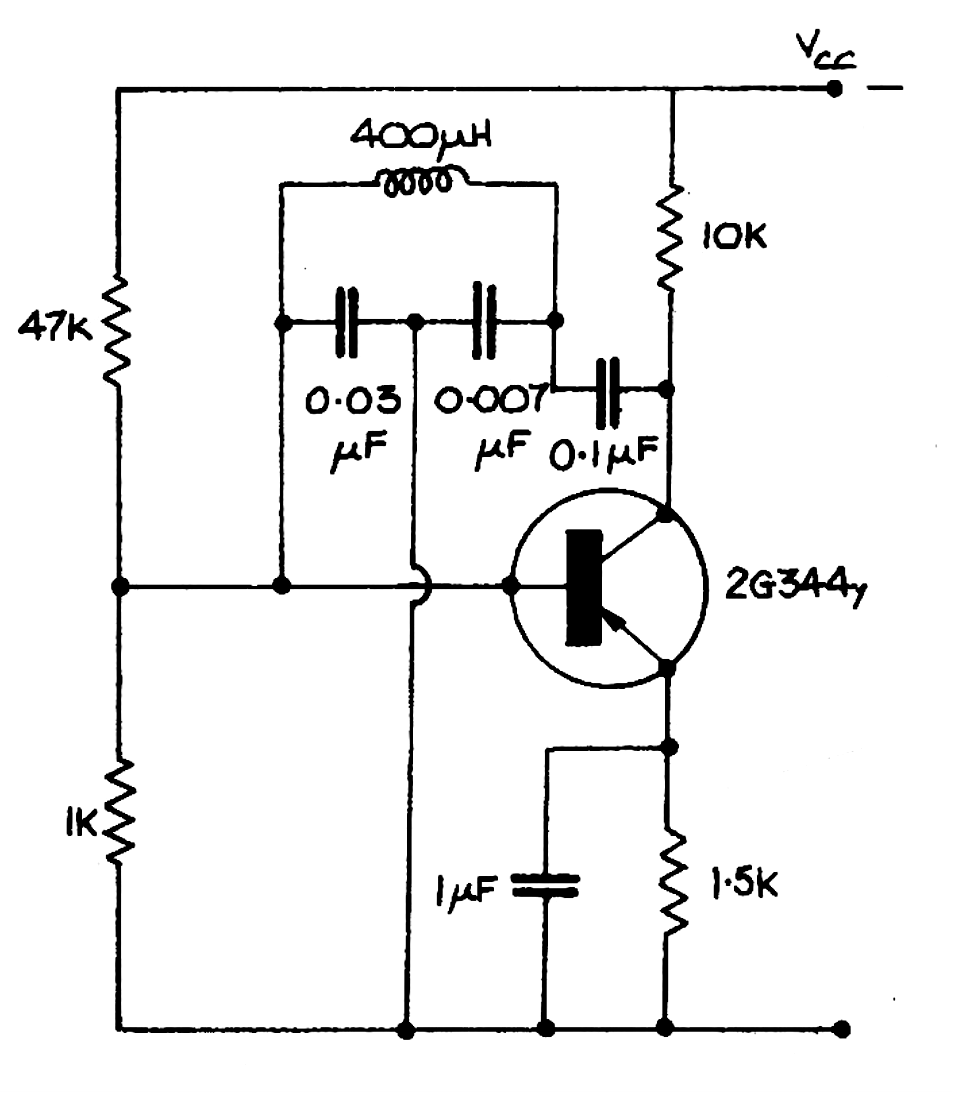

The frequency of this oscillator depends on the inductor and capacitors in parallel with it. In this 80's circuit, the frequency is on the order of 100 kHz but it can reach higher frequencies depending on the transistor used. The power will be between 9 and 12 V.
| Clique na imagem para ampliar |
