FET IF Amplifier (CB4289E)

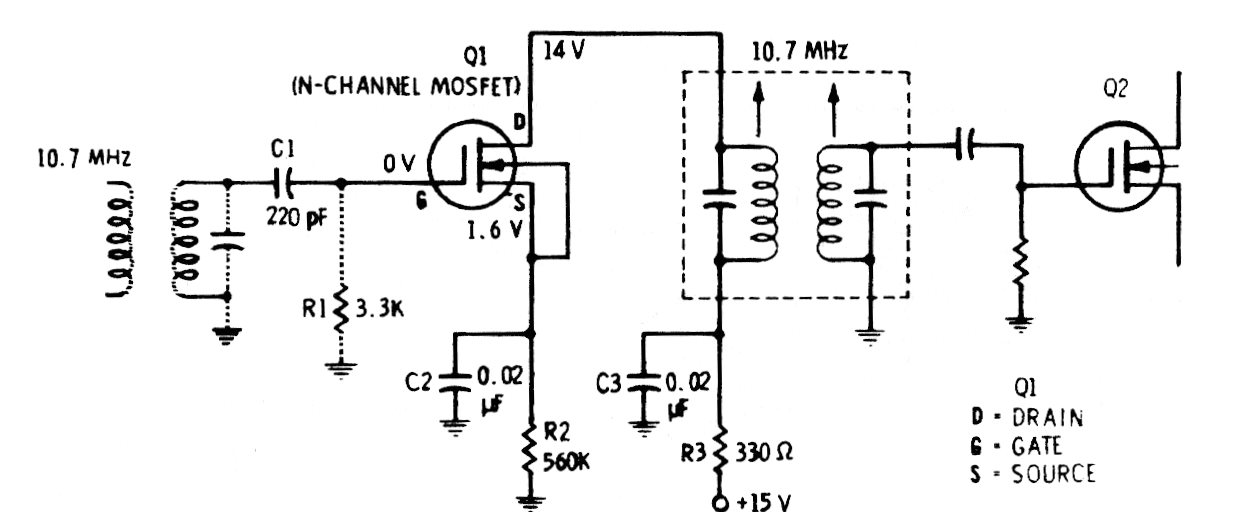

In the figure we have an IF amplifier step using a MOSFET. The circuit was found in a 1980s documentation, intended for FM receivers of the time.
