FET mixer (CB4292E)

Details
Written by: Newton C. Braga

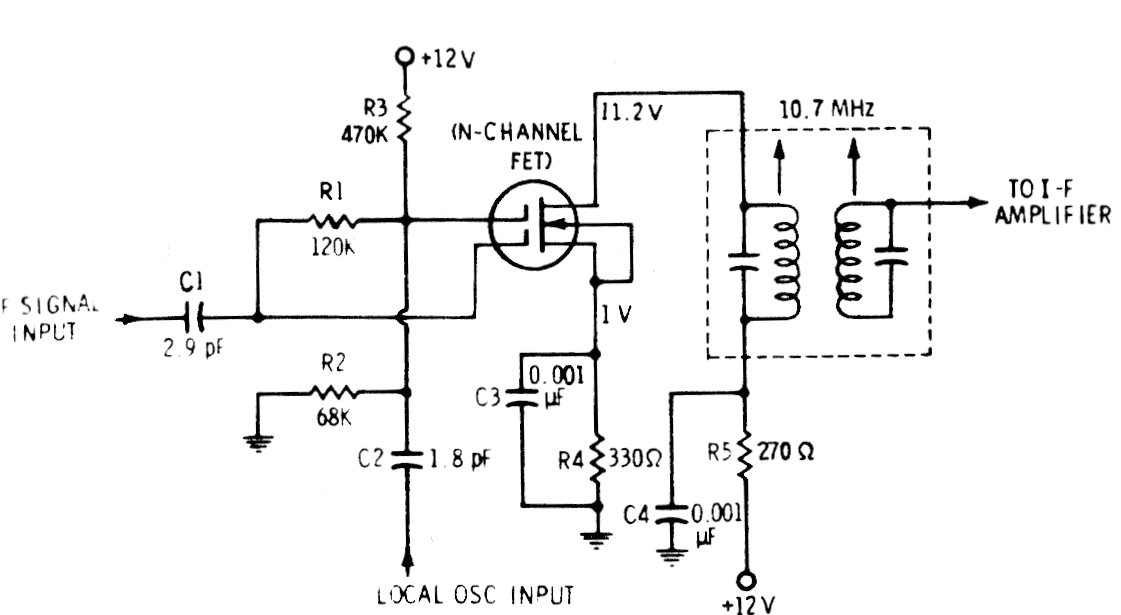

     This dual-gate FET RF signal mixer circuit was found in a 1980s documentation. The circuit is intended for applications in superheterodyne receivers of the time.




| Clique na imagem para ampliar |
