FM Local Oscillator (CB4293E)

Details
Written by: Newton C. Braga

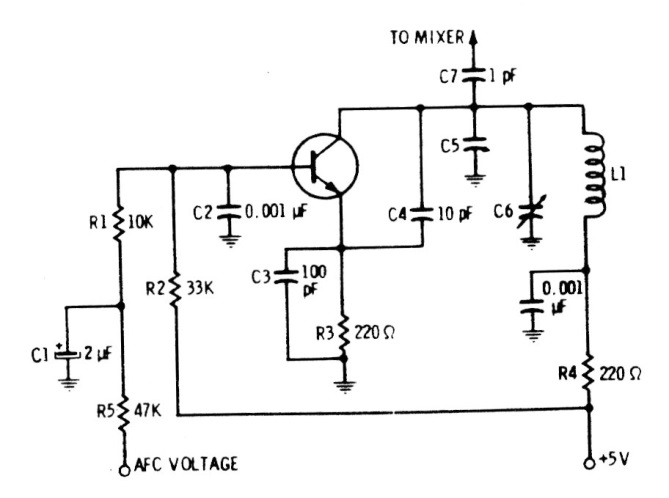

     This is the typical circuit of a local oscillator for a superheterodyne FM receiver. The circuit was found in a 1980s documentation and is typical of early and early receivers.
