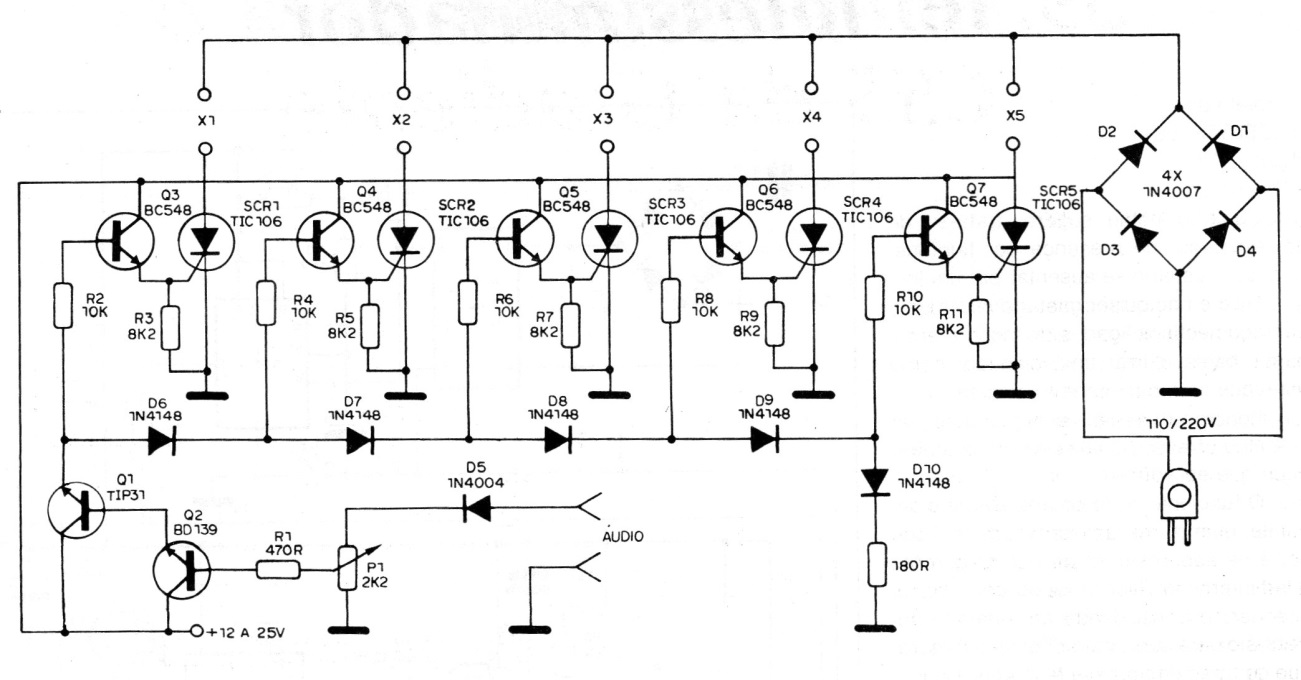

This circuit uses incandescent lamps for the 110V or 220V grid. We found this configuration in a 1989 documentation and lamps up to about 100 W can be connected to the outputs. SCRs must be fitted with heat sinks. It will be interesting to add an isolation transformer to the audio input.
| Clique na imagem para ampliar |
