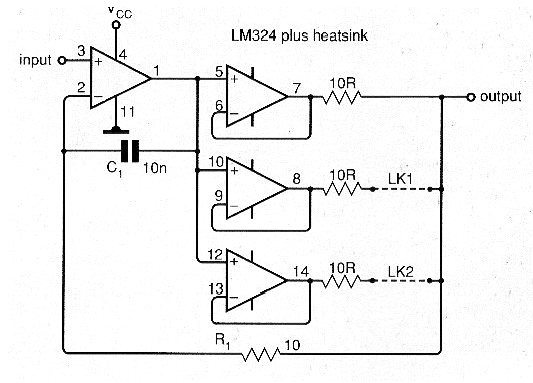

This circuit was obtained from an Electronics World magazine from 1992. The circuit provides an output current of up to 85 mA from an LM324 quadruple operational amplifier by connecting three of them in parallel. The bandwidth is 200 kHz.
