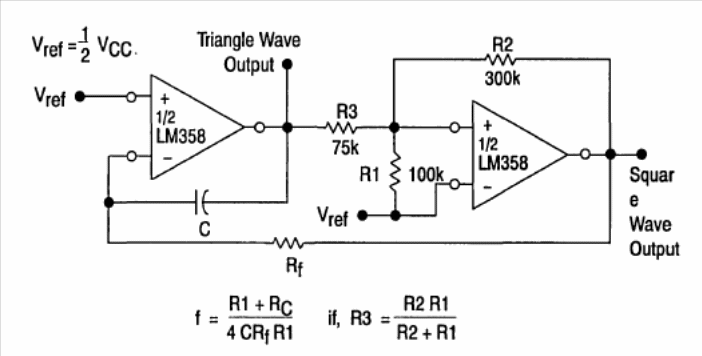

Two operational are used on this triangular-rectangular oscillator suggested by Motorola in its 1993 Linear Interface ICs. Other series operational amplifiers such as the LM258, LM358 and LM2904 can be used. The power supply must be symmetrical.
| Clique na imagem para ampliar |
