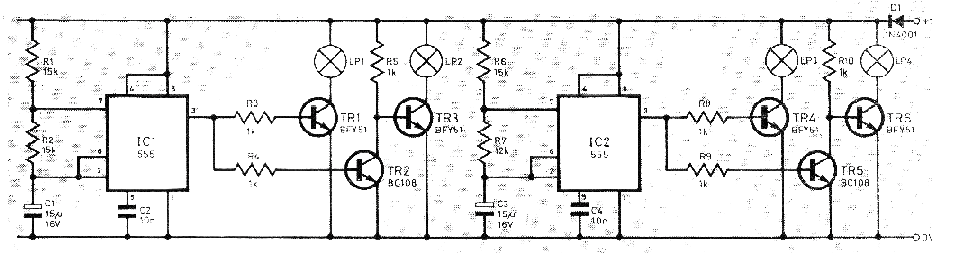

This circuit was obtained from an English magazine from 1985. It consists of a pulser that drives four 12 V lamps up to 200 mA at a frequency that depends on C1 and C2. The circuit must be powered by a 12 V battery or source. The transistors can be BD135 or equivalent.
| Clique na imagem para ampliar |
