Solar Alarm Clock (CB4305E)

Details
Written by: Newton C. Braga

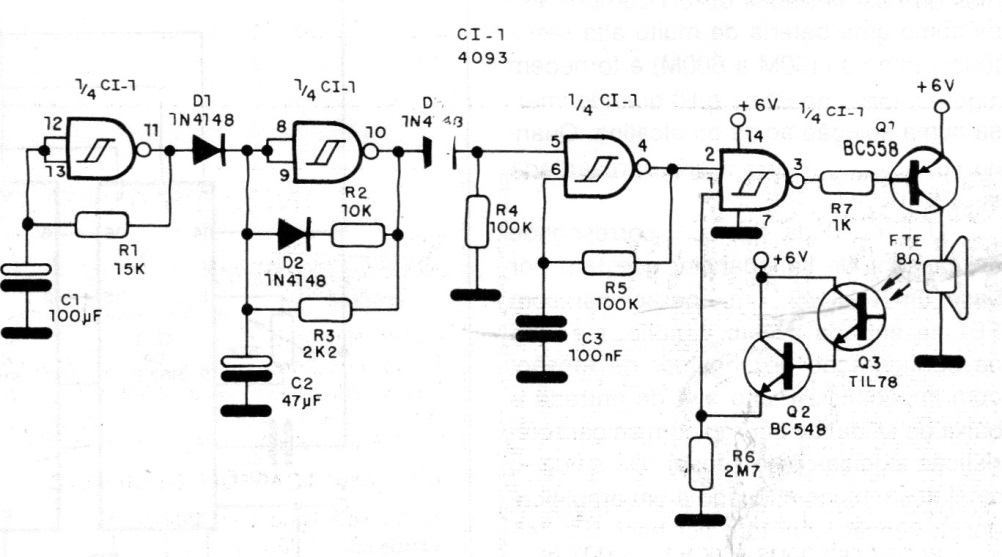

     This circuit detects sunlight at dawn by triggering an audio oscillator. The photo transistor can be of any type and the intermittent sound can be programmed differently by changing capacitors. Any photo transistor can be used.




| Clique na imagem para ampliar |
