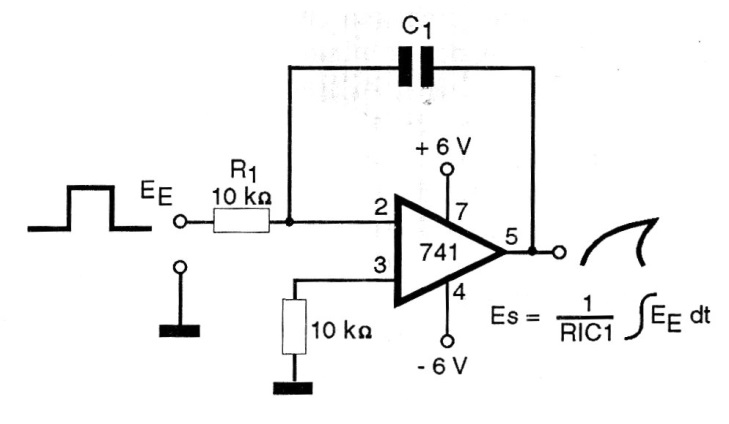

In the figure we have the simple way to obtain an integrator with a type 741 operational amplifier. The relationship between output voltage and input voltage, depending on the components used is calculated by the formula next to the diagram. Note that the power supply must be symmetrical and that from a rectangular input signal we have an exponential signal at the output. Other operational amplifiers can be used in the same configuration.
