Battery Charge & Discharge Indicator (CB4986E)

Details: Written by: Newton C. Braga

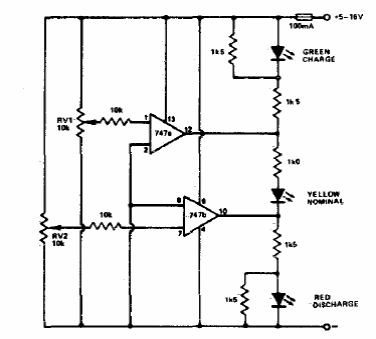

We find this circuit in an English 80's documentation. The circuit can be made with more modern components. It indicates the voltage level of a 12 V battery through 3 different color LEDs.
