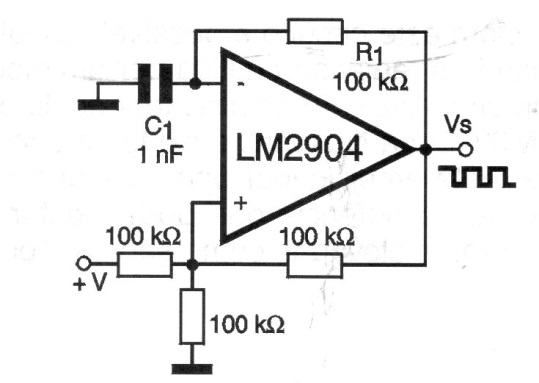

The LM2904 is not very common today, but common comparators and operationals can be used in the same configuration. The circuit does not require symmetrical source and the frequency is determined by the capacitor. For the indicated value the generated frequency is 1 kHz.
