Garage Warning (CB6041E)

Details
Written by: Newton C. Braga

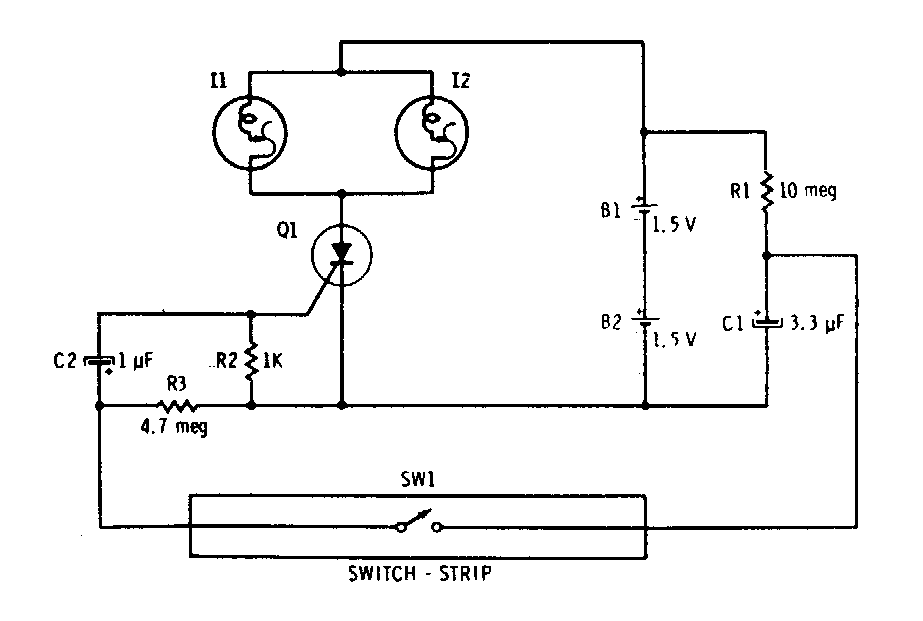

    We found this circuit in an old documentation. Its purpose is to turn on warning lights when the vehicle in a garage touches or passes a sensing bar preventing it from hitting the wall.
