Divider by 10 (CB5180E)

Details: Written by: Newton C. Braga

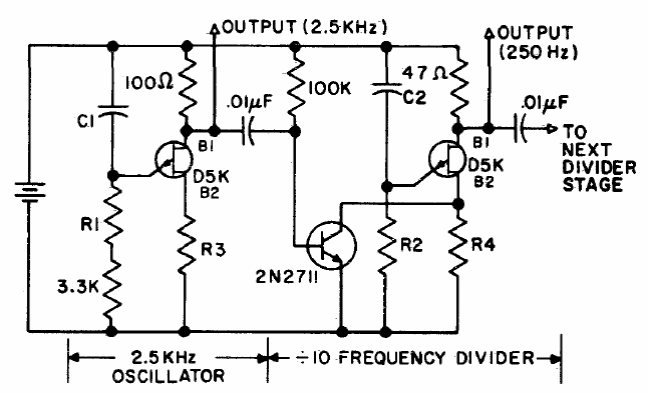

This frequency divider by 10 uses discrete components only. Modern equivalent components can be used as the circuit is from an 80's documentation. Nearby frequencies can be used.
