TTL Oscillator (CB5996E)

Details
Written by: Newton C. Braga

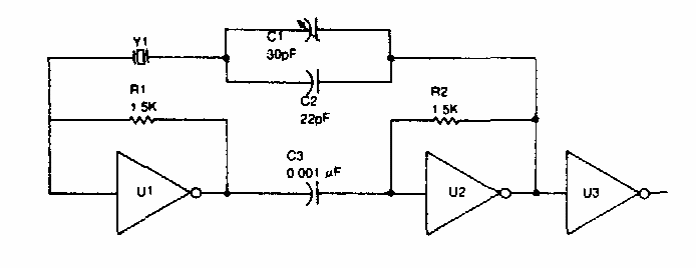

     We show an oscillator that produces rectangular TTL signals based on inverters. Inverters can also be designed with standard NOR or NAND gates. The circuit must be powered by 5 V.




| Clique na imagem para ampliar |
