Dwell Light (CB6051E)

Details
Written by: Newton C. Braga

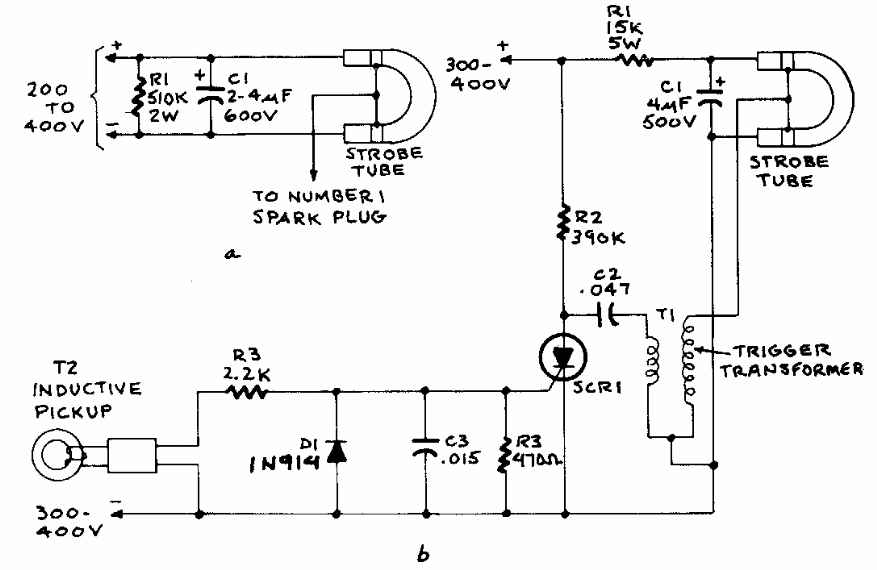

     This circuit for car engine spot adjustment was found in an 80's Radio Electronics. The circuit makes use of a xenon lamp and the pulse transformer must have a turn ratio of 1:50.




| Clique na imagem para ampliar |
