Signal Tracer and Injector (CB5891E)

Details
Written by: Newton C. Braga

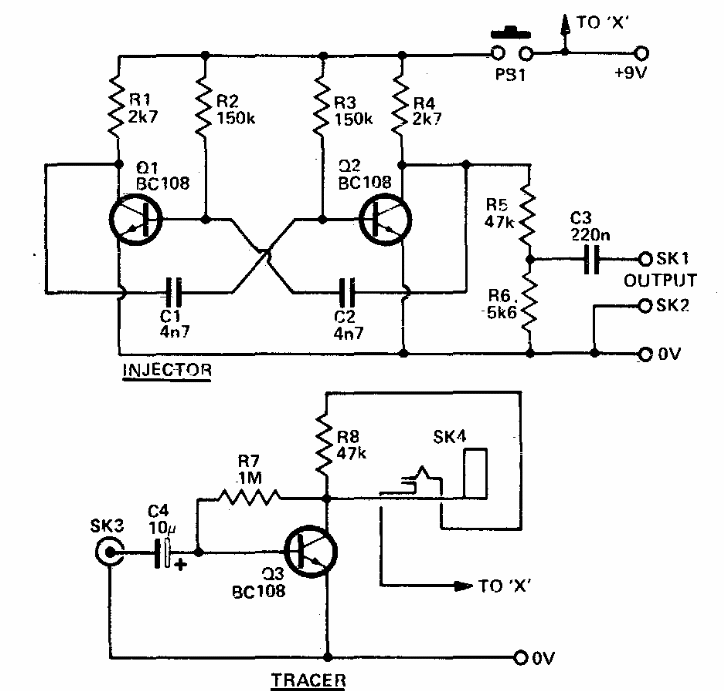

     The transistors of this circuit found in an English 1980s documentation may be the modern BC548 equivalents. The circuit is battery powered and the earphone must be crystal.




| Clique na imagem para ampliar |
