Voltage Detector for Battery Chargers (CB6061E)

Details
Written by: Newton C. Braga

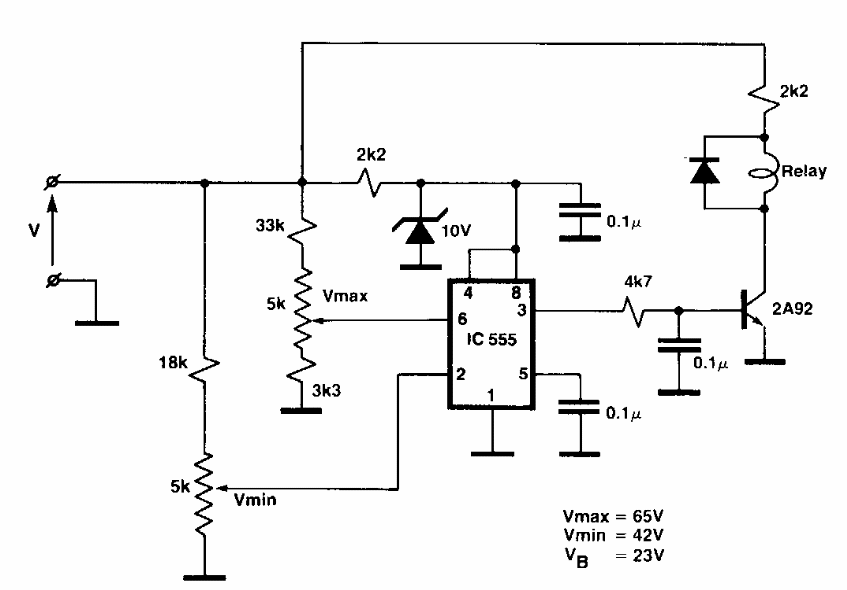

     Based on a 555, this 80's American documentation circuit detects the voltage of a battery and can then disconnect the charger. The transistor may be a general purpose type.
