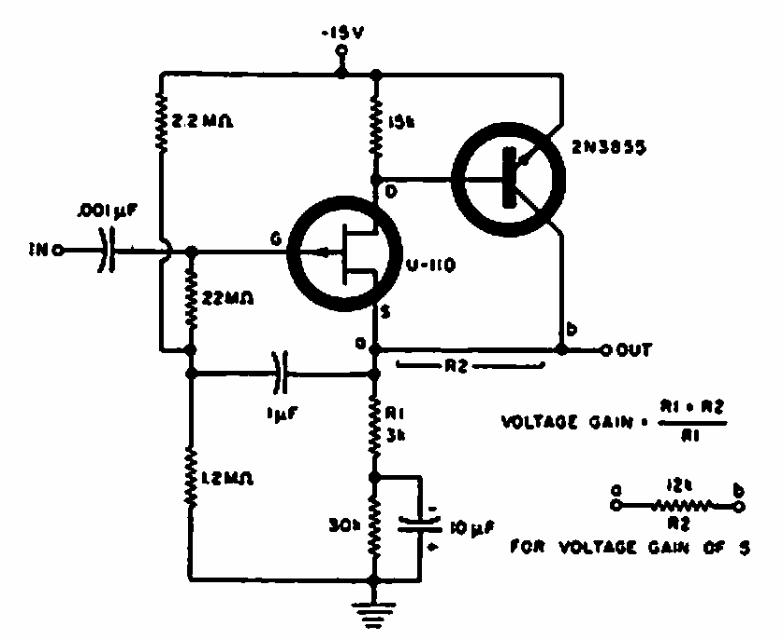

Stage with FET and Bipolar (CB6152E)

Details
Written by: Newton C. Braga



     This circuit is from an Electronics World of 1967. The described calculations can be applied to equivalent circuits with modern transistors.
