Bridge Balance Indicator (CB6068E)

Details
Written by: Newton C. Braga

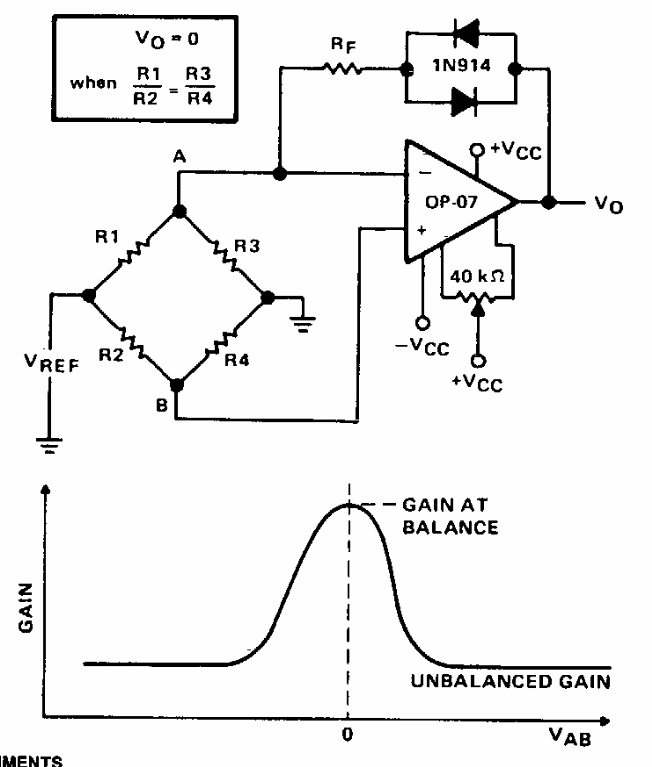

     This Texas Instruments circuit is from the 80's. However, it can be implemented with modern operating systems. The power supply must be symmetrical.




| Clique na imagem para ampliar |
