Remote Control Receiver (CB25900E)

Details
Written by: Newton C. Braga

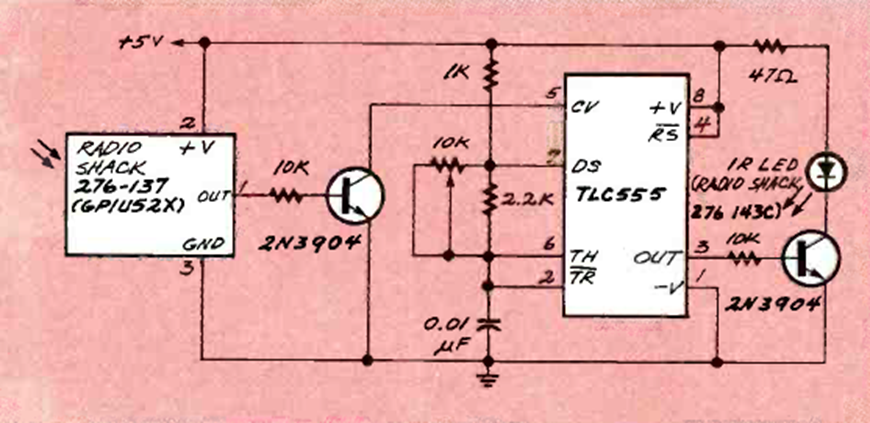

Based on Radio Shack 276-137, this circuit was found in the December 1995 issue of Electronics Now magazine. The circuit drives an LED but could use a relay instead.
