Switching Power Supply (CB25379E)

Details
Written by: Newton C. Braga

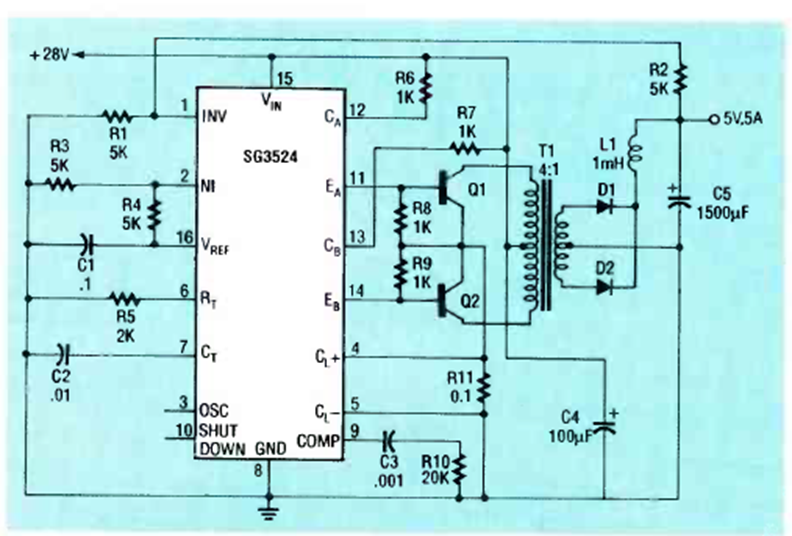

This circuit uses the SQ3524, a switching integrated circuit. The circuit was found in the April 1991 issue of Radio Electronics magazine.
