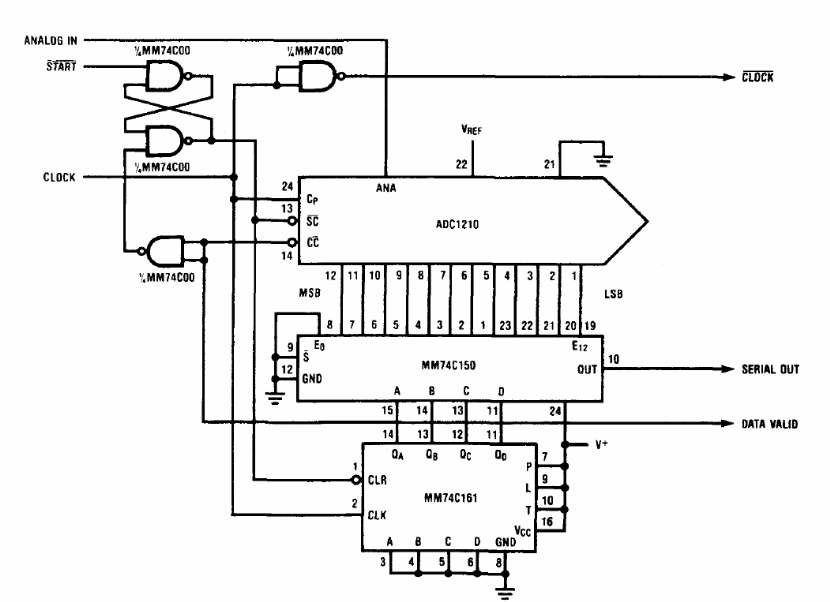

A-D Converter with Serial Output ADC1210 (CB14348E)

The circuit is from the Linear applications Handbook of the National Semiconductor of 1994. The components used are not common today.

| Clique na imagem para ampliar |
