Blocking oscillator (CB6921E)

Details
Written by: Newton C. Braga

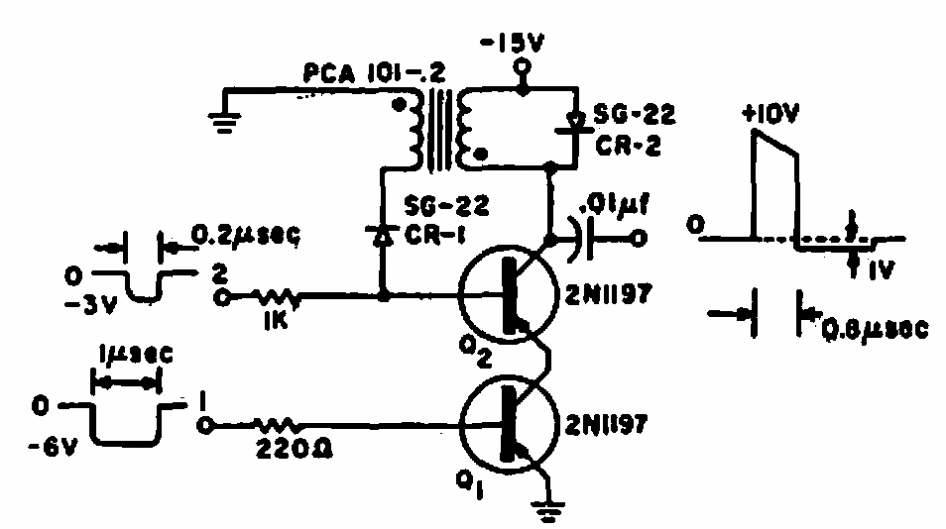

     This blocking oscillator configuration was found in a 1964 American book. The circuit can be designed with modern transistors and the frequency depends on the transformer.




| Clique na imagem para ampliar |
