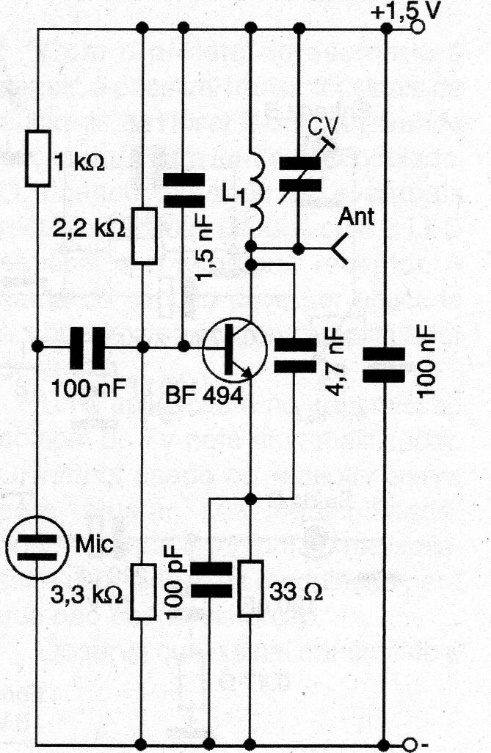

The coil of this small FM transmitter that works as a wireless microphone consists of 4 turns of 24 or 26 AWG wire in the form of 1 cm without core. The circuit is from 2005 documentation and uses a two-terminal electret microphone. The power can be done with one or two AAA batteries.
