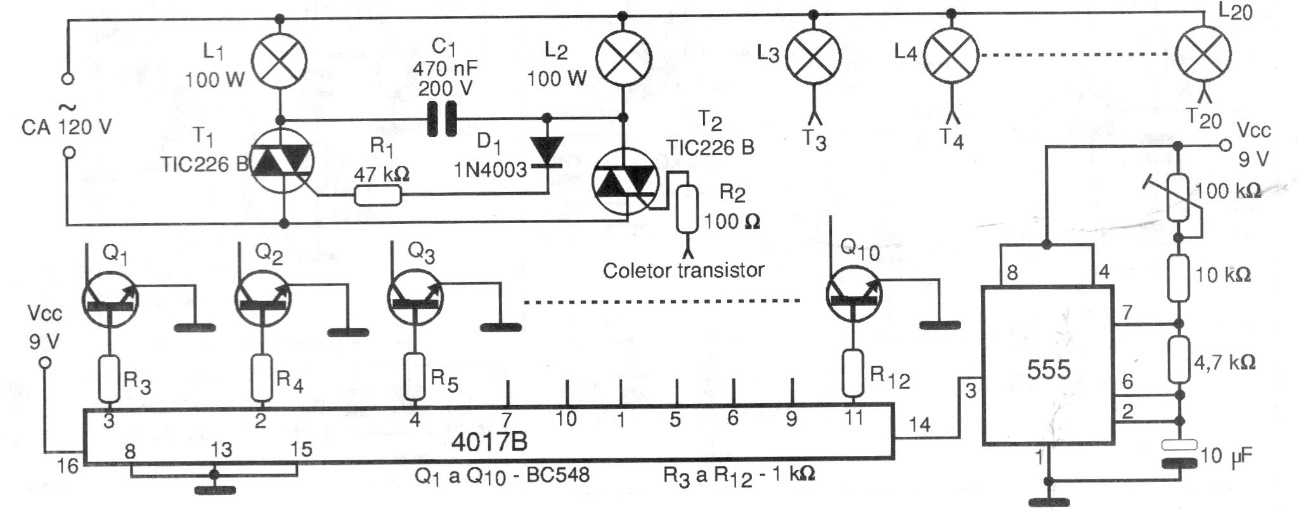

This circuit was obtained in a 1999 documentation and makes use of common components. The circuit works only with incandescent lamps and the TRIACs must have good heat sinks. The circuit must have a separate source for the drive (9 V).
| Clique na imagem para ampliar |
